An integrated intelligent processing line customized for shipbuilding profiles, strip materials and hull structural components.
It integrates fully automatic vision units for profile feeding, cutting, sorting, straightening, assembly welding, grinding and warehouse transportation. Suitable for mass flexible processing of ship blocks and hull parts, it adopts 3D vision positioning to achieve precise alignment and dimensional inspection of special-shaped profiles, reducing labor reliance in shipbuilding and boosting processing accuracy and output of hull blocks.
Sheet Metal Storage System01
Pitted Steel Plate Inspection02
Coating Thickness Inspection03
Remnant Material Inspection04
Remnant Steel Plate Marking System05
Remnant Steel Plate Positioning System06
Automatic Beveling System07
Loading & Unloading Machining System08
Part Dimension Measurement09
Gantry Sorting System10
Robot Sorting System11
Grinding & Edge-Scraping System12
Sub-assembly Kit Matching System13
Kit Matching System14
Assembly Welding System15
Assembly Segment Dimension Measurement16

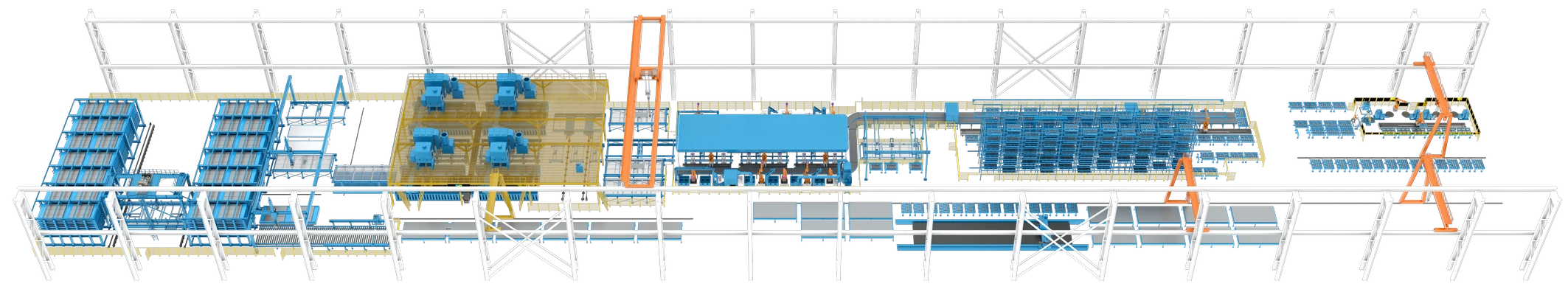

Lifting Lug Welding17Targeting remnant material processing for shipyards, SpeedBot has launched an intelligent remnant material production line. The full workflow covers scanning & warehousing of various irregular remnant plates, nesting cutting, sorting, grinding and beveling, as well as component kitting and vertical storage systems, which drastically boosts remnant material utilization rate.
